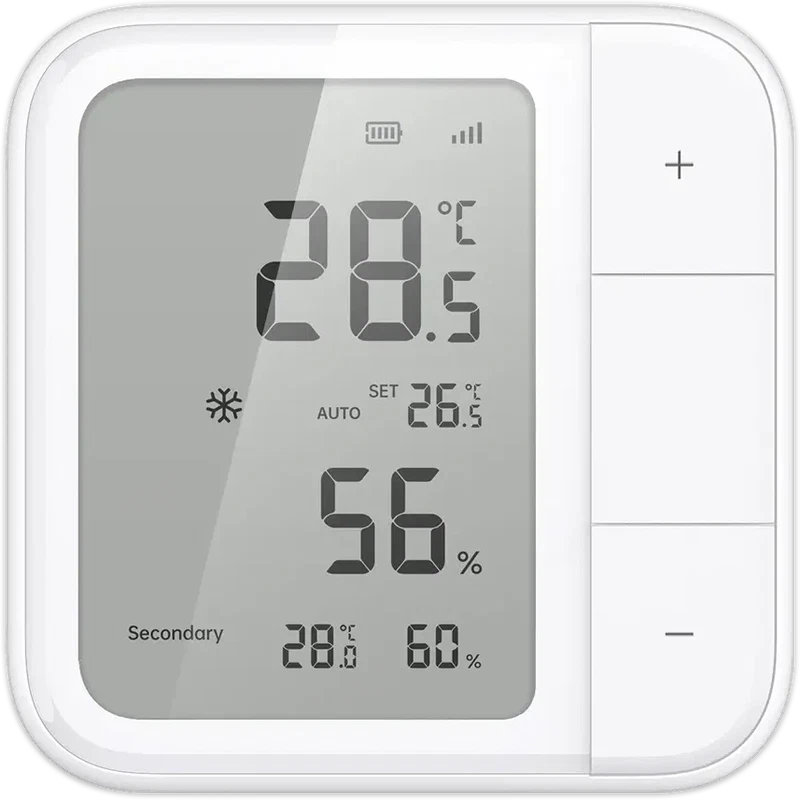

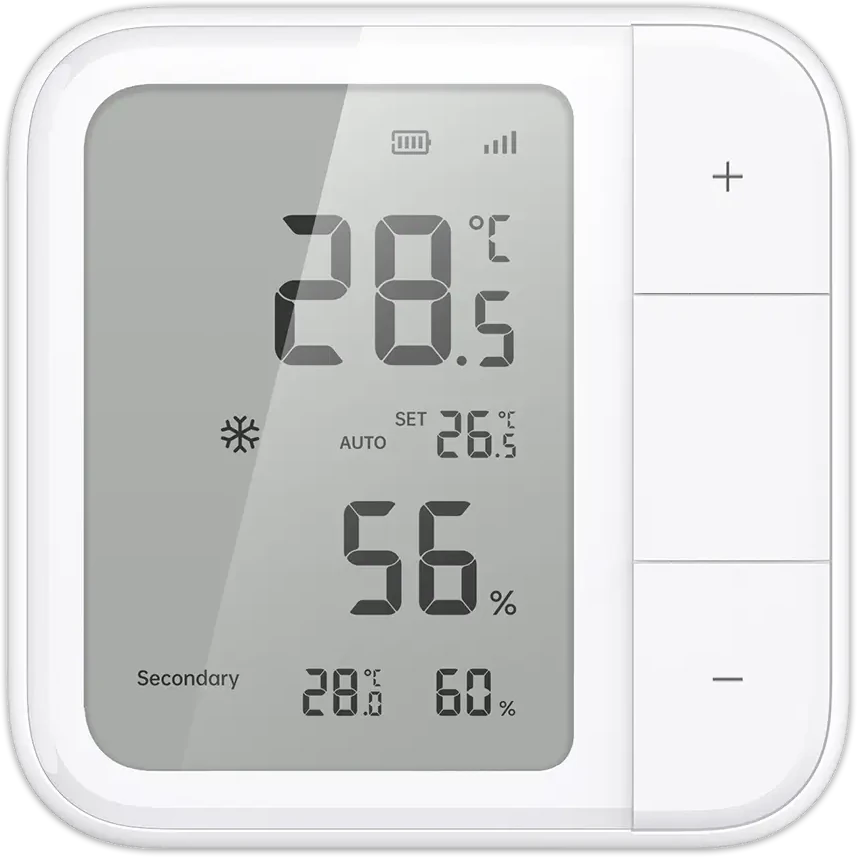

Aqara Climate Sensor W100 is a Zigbee temperature and humidity sensor with an LCD display and three programmable buttons, so it reads the room and doubles as a thermostat-style wall controller.
Combines an accurate temperature and humidity sensor, an LCD readout, and three programmable buttons, so it doubles as a thermostat-style wall controller. Runs over Zigbee (Aqara Hub) or as Matter over Thread, which needs a Thread border router on the network. Only one protocol can be active at a time.
Works on integrations
Protocols
One mode at a time: the device serves one of these combinations, not all of them at once.
Roles it can fill
Entities in Home Assistant
22 entities via Matter
Primary entities 5 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Button (3) | event | button | — |
| Button (4) | event | button | — |
| Button (5) | event | button | — |
| Humidity | sensor | humidity | % |
| Temperature | sensor | temperature | °C |
Diagnostics 17 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Identify (1) | button | identify | — |
| Identify (2) | button | identify | — |
| Identify (3) | button | identify | — |
| Identify (4) | button | identify | — |
| Identify (5) | button | identify | — |
| Battery | sensor | battery | % |
| Battery type | sensor | — | — |
| Battery voltage | sensor | voltage | V |
| Boot reason | sensor | enum | — |
| Current switch position (3) | sensor | — | — |
| Current switch position (4) | sensor | — | — |
| Current switch position (5) | sensor | — | — |
| Reboot count | sensor | — | — |
| Thread channel | sensor | — | — |
| Thread network name | sensor | — | — |
| Thread routing role | sensor | enum | — |
| Uptime | sensor | uptime | — |
Verified against Home Assistant 2026.8.3: this is the entity list Home Assistant creates for this device, taken from core's own test snapshots rather than written by hand. Entity IDs depend on the name you give the device during commissioning, so only the entity names and types are shown here.
Recipes using this device
No recipes reference this device yet.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
