Aqara

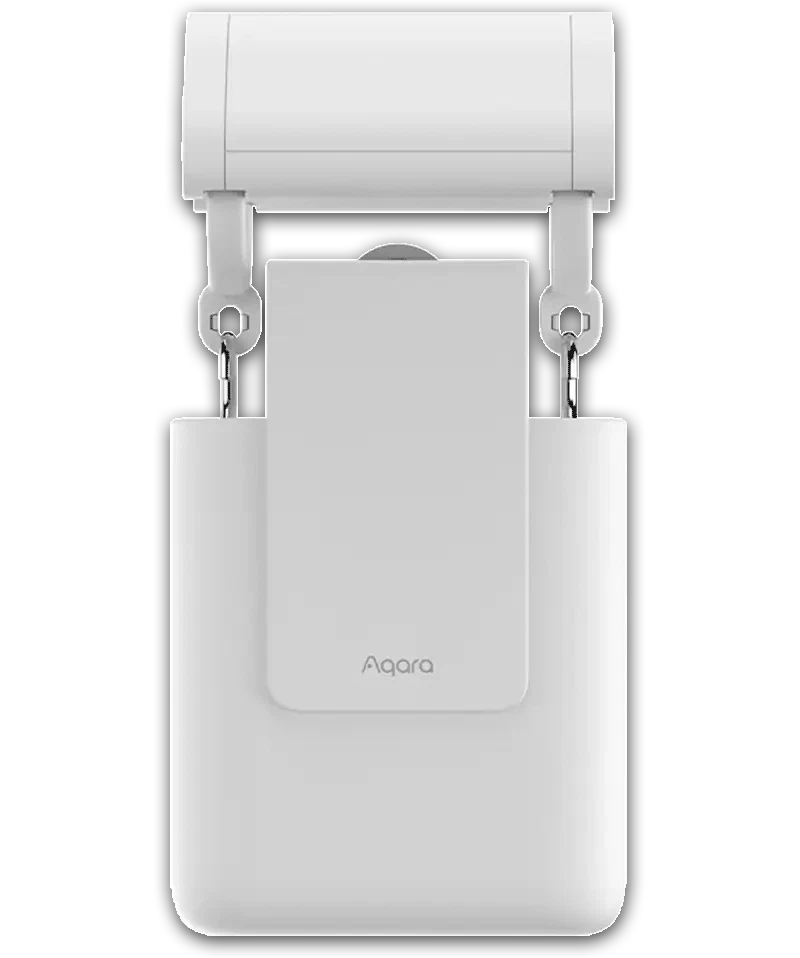

Curtain Driver E1
Aqara Curtain Driver E1 motorizes existing curtain tracks or rods over Zigbee, reports position for any opening level, and runs for months on a rechargeable battery.
Comes in track and rod versions and reports position, so recipes can set any opening level. Rechargeable battery lasts months; runs locally over Zigbee.
Works on integrations
Protocols
Roles it can fill
Entities in Home Assistant
16 entities via zigbee2mqtt
Primary entities 11 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Charging | binary_sensor | — | — |
| Running | binary_sensor | — | — |
| Cover (main) | cover | — | — |
| Hooks lock | select | — | — |
| Limits calibration | select | — | — |
| Hooks state | sensor | — | — |
| Illuminance | sensor | illuminance | lx |
| Motor state | sensor | — | — |
| Power source | sensor | — | — |
| Target position | sensor | — | % |
| Hand open | switch | — | — |
Configuration 1 Settings exposed as entities, tunable from Home Assistant.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Identify | select | — | — |
Diagnostics 4 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Action | event | — | — |
| Battery | sensor | battery | % |
| Device temperature | sensor | — | °C |
| Voltage | sensor | voltage | mV |
From the zigbee2mqtt device database (zigbee-herdsman-converters
26.124.0):
the entities zigbee2mqtt creates for
ZNCLBL01LM.
Paired through ZHA instead, the same hardware produces a different set.
Recipes using this device
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
