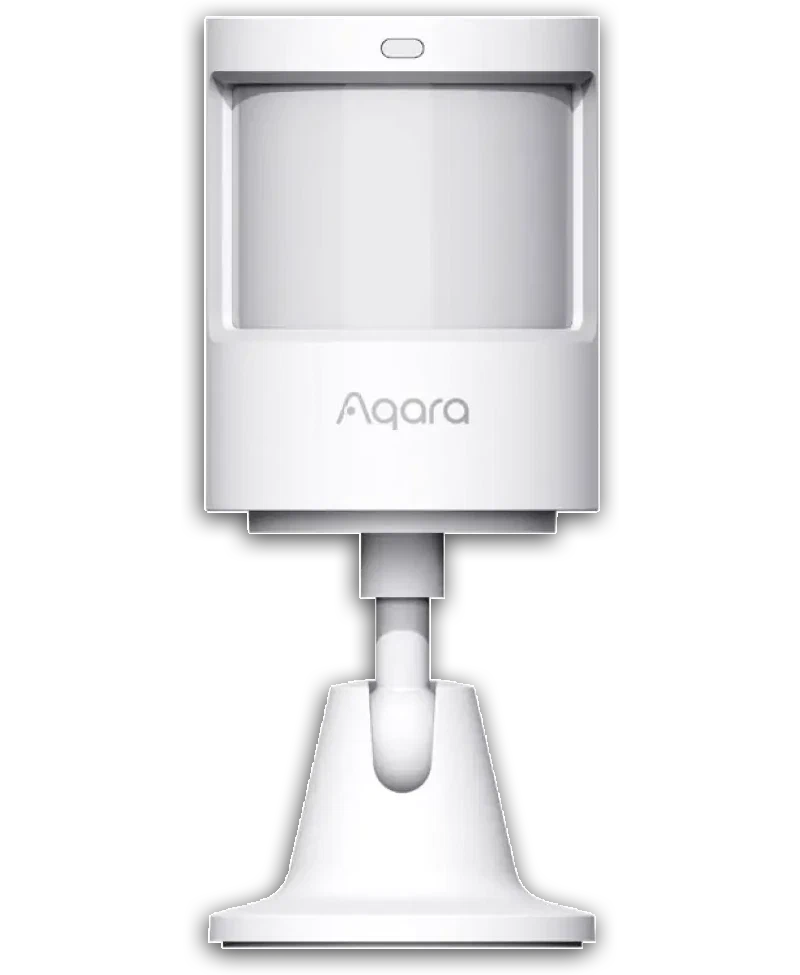

Aqara Motion Sensor P1 is a Zigbee 3.0 PIR motion sensor with a built-in light sensor and a detection interval adjustable from seconds to minutes, avoiding constant retriggering in busy rooms.
Entities in Home Assistant
8 entities via zigbee2mqtt
Primary entities 2 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Occupancy | binary_sensor | occupancy | — |
| Illuminance | sensor | illuminance | lx |
Configuration 3 Settings exposed as entities, tunable from Home Assistant.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Detection interval | number | — | s |
| Motion sensitivity | select | — | — |
| Trigger indicator | switch | — | — |
Diagnostics 3 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Battery | sensor | battery | % |
| Device temperature | sensor | — | °C |
| Voltage | sensor | voltage | mV |
From the zigbee2mqtt device database (zigbee-herdsman-converters
26.124.0):
the entities zigbee2mqtt creates for
RTCGQ14LM.
Paired through ZHA instead, the same hardware produces a different set.
Recipes using this device
Away Motion Camera Alert
Installs Home Assistant automations that watch for motion while the house is armed and send you a notification with the camera view attached. Add presence sensors to arm and disarm on their own, a siren to sound off, and lights to flash.
Motion Hallway Light
Installs a Home Assistant automation that turns a hallway or landing light on when motion is seen and off again once the space has been still for a grace period you set. Add a light sensor and it only runs after dark, add a presence sensor and it holds the light while someone lingers.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
Circadian Adaptive Lighting
Installs a Home Assistant automation that walks the colour and brightness of your dimmable lights through the day, cool and bright around midday and warm and low in the evening. It only ever changes lights that are already on, so it never switches a light on by itself.
Presence Room Lighting
Installs a Home Assistant automation that keeps a room's lights on for as long as an mmWave presence sensor sees someone in it, and switches them off shortly after the room empties. Add a light sensor to run only after dark, and dimmable lights that come up softly.
Shades by Sun and Heat
Installs a Home Assistant automation that closes your shades when the sun climbs high and the day is hot, and opens them again as the sun drops, using Home Assistant's own sun position. Add a light and temperature sensor to hold it to genuinely bright, hot afternoons.
