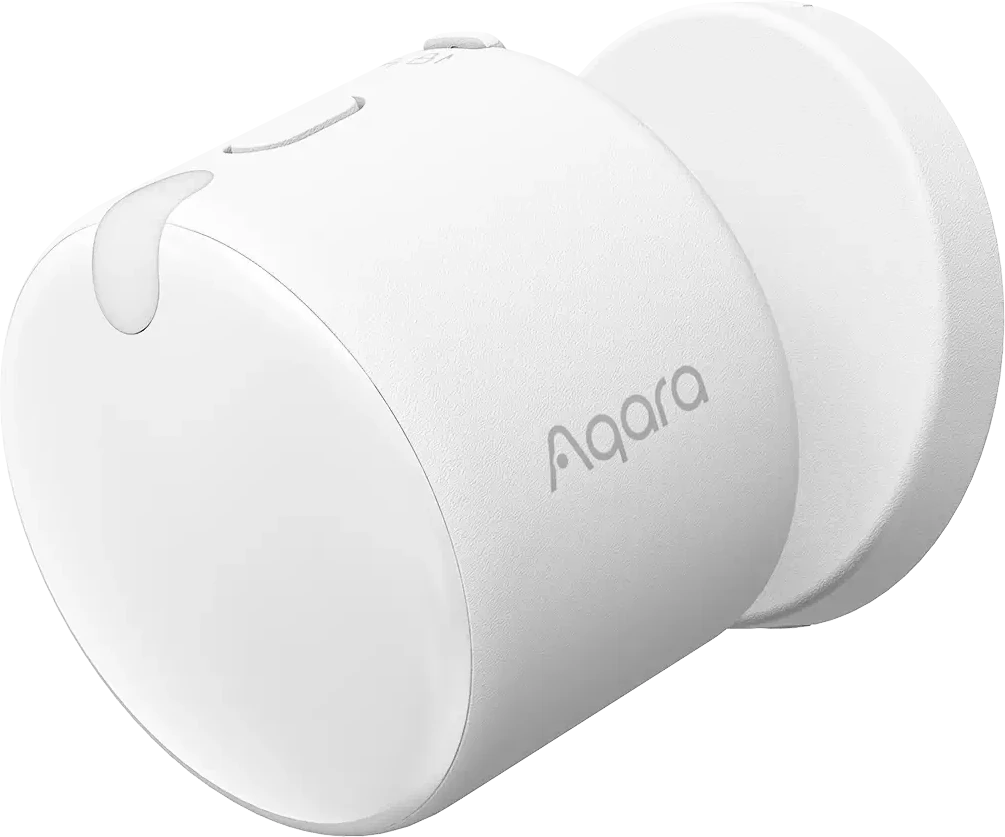

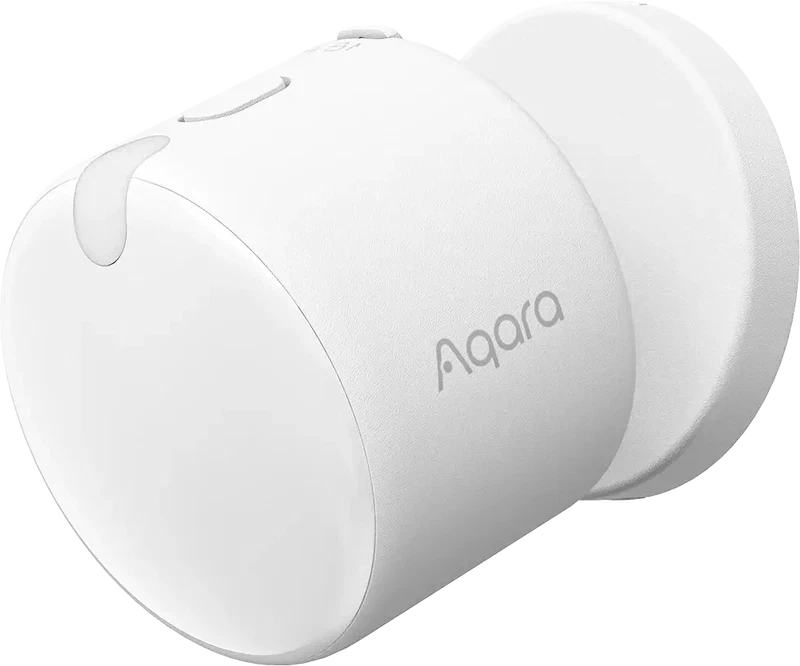

Aqara FP300 is a Matter over Thread 5-in-1 sensor combining mmWave presence, motion, light, temperature, and humidity in one device, cutting the number of sensors needed per room.
Entities in Home Assistant
19 entities via Matter
Primary entities 4 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Occupancy | binary_sensor | occupancy | — |
| Humidity | sensor | humidity | % |
| Illuminance | sensor | illuminance | lx |
| Temperature | sensor | temperature | °C |
Configuration 2 Settings exposed as entities, tunable from Home Assistant.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Hold time | number | — | s |
| Sensitivity | number | — | — |
Diagnostics 13 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Identify (1) | button | identify | — |
| Identify (2) | button | identify | — |
| Identify (3) | button | identify | — |
| Identify (4) | button | identify | — |
| Battery | sensor | battery | % |
| Battery type | sensor | — | — |
| Battery voltage | sensor | voltage | V |
| Boot reason | sensor | enum | — |
| Reboot count | sensor | — | — |
| Thread channel | sensor | — | — |
| Thread network name | sensor | — | — |
| Thread routing role | sensor | enum | — |
| Uptime | sensor | uptime | — |
Verified against Home Assistant 2026.8.3: this is the entity list Home Assistant creates for this device, taken from core's own test snapshots rather than written by hand. Entity IDs depend on the name you give the device during commissioning, so only the entity names and types are shown here.
Recipes using this device
Away Motion Camera Alert
Installs Home Assistant automations that watch for motion while the house is armed and send you a notification with the camera view attached. Add presence sensors to arm and disarm on their own, a siren to sound off, and lights to flash.
Motion Hallway Light
Installs a Home Assistant automation that turns a hallway or landing light on when motion is seen and off again once the space has been still for a grace period you set. Add a light sensor and it only runs after dark, add a presence sensor and it holds the light while someone lingers.
Presence Room Lighting
Installs a Home Assistant automation that keeps a room's lights on for as long as an mmWave presence sensor sees someone in it, and switches them off shortly after the room empties. Add a light sensor to run only after dark, and dimmable lights that come up softly.
Presence Thermostat Setback
Installs a Home Assistant automation that eases your thermostat into an energy-saving preset once everyone has left, and brings it back to a comfort preset the moment someone returns. Add extra occupancy sensors and any one of them counts as home.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
Circadian Adaptive Lighting
Installs a Home Assistant automation that walks the colour and brightness of your dimmable lights through the day, cool and bright around midday and warm and low in the evening. It only ever changes lights that are already on, so it never switches a light on by itself.
Door or Window Left Open Alert
Installs a Home Assistant automation that watches your door and window sensors and pushes a notification to your phone when one is left open past a grace period while nobody is home. Add lights and it flashes the room, add a speaker and it announces the warning out loud.
Shades by Sun and Heat
Installs a Home Assistant automation that closes your shades when the sun climbs high and the day is hot, and opens them again as the sun drops, using Home Assistant's own sun position. Add a light and temperature sensor to hold it to genuinely bright, hot afternoons.
Window Open HVAC Pause
Installs a Home Assistant automation that turns the thermostat off when a window is left open, so you are not heating or cooling the street, and turns it back to the mode it was in once every window is shut. Add door sensors and a temperature sensor for the full picture.
