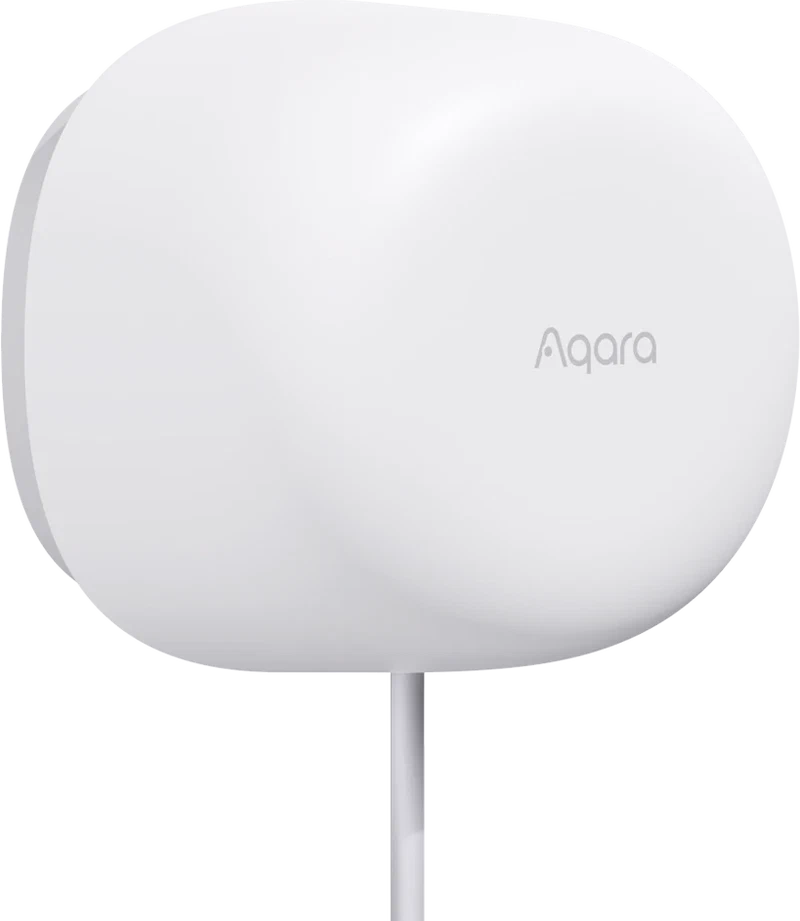

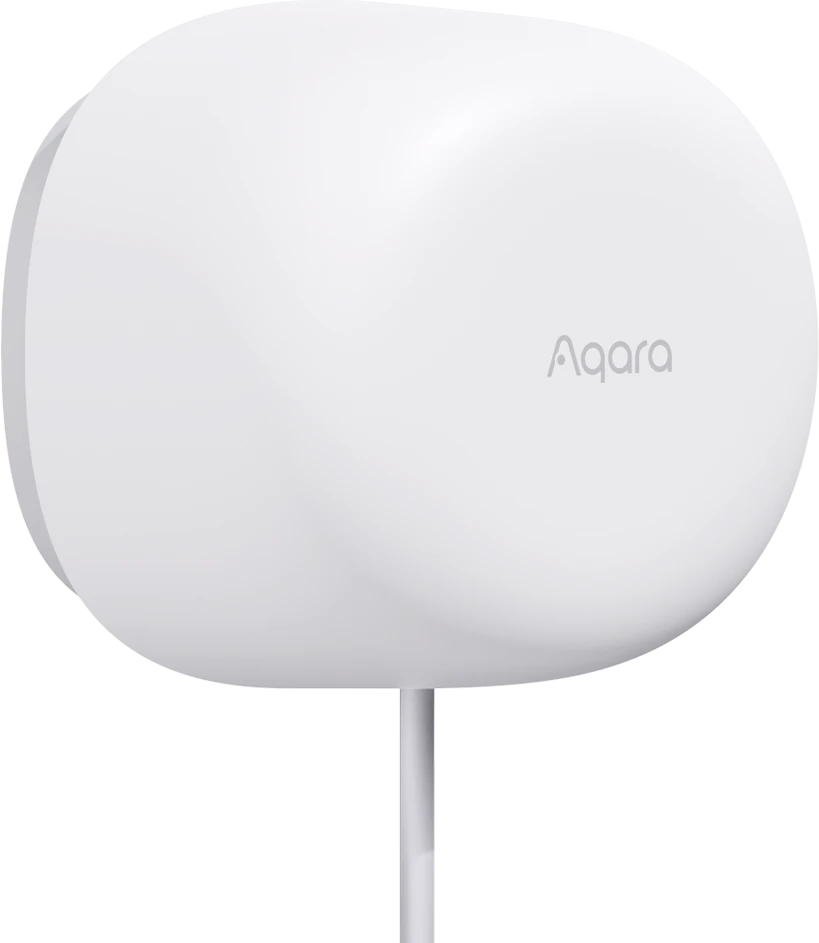

Aqara FP1E is a Zigbee mmWave presence sensor that detects both motion and stillness, holding occupancy in offices and media rooms where a PIR sensor would lose a motionless person.
Entities in Home Assistant
12 entities via zigbee2mqtt
Primary entities 8 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Presence | binary_sensor | occupancy | — |
| Detection range | number | — | m |
| Restart device | select | — | — |
| Spatial learning | select | — | — |
| Movement | sensor | — | — |
| Target distance | sensor | — | m |
| Ai interference source selfidentification | switch | — | — |
| Ai sensitivity adaptive | switch | — | — |
Configuration 2 Settings exposed as entities, tunable from Home Assistant.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Identify | select | — | — |
| Motion sensitivity | select | — | — |
Diagnostics 2 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Device temperature | sensor | — | °C |
| Power outage count | sensor | — | — |
From the zigbee2mqtt device database (zigbee-herdsman-converters
26.124.0):
the entities zigbee2mqtt creates for
FP1E.
Paired through ZHA instead, the same hardware produces a different set.
Recipes using this device
Away Motion Camera Alert
Installs Home Assistant automations that watch for motion while the house is armed and send you a notification with the camera view attached. Add presence sensors to arm and disarm on their own, a siren to sound off, and lights to flash.
Motion Hallway Light
Installs a Home Assistant automation that turns a hallway or landing light on when motion is seen and off again once the space has been still for a grace period you set. Add a light sensor and it only runs after dark, add a presence sensor and it holds the light while someone lingers.
Presence Room Lighting
Installs a Home Assistant automation that keeps a room's lights on for as long as an mmWave presence sensor sees someone in it, and switches them off shortly after the room empties. Add a light sensor to run only after dark, and dimmable lights that come up softly.
Presence Thermostat Setback
Installs a Home Assistant automation that eases your thermostat into an energy-saving preset once everyone has left, and brings it back to a comfort preset the moment someone returns. Add extra occupancy sensors and any one of them counts as home.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
