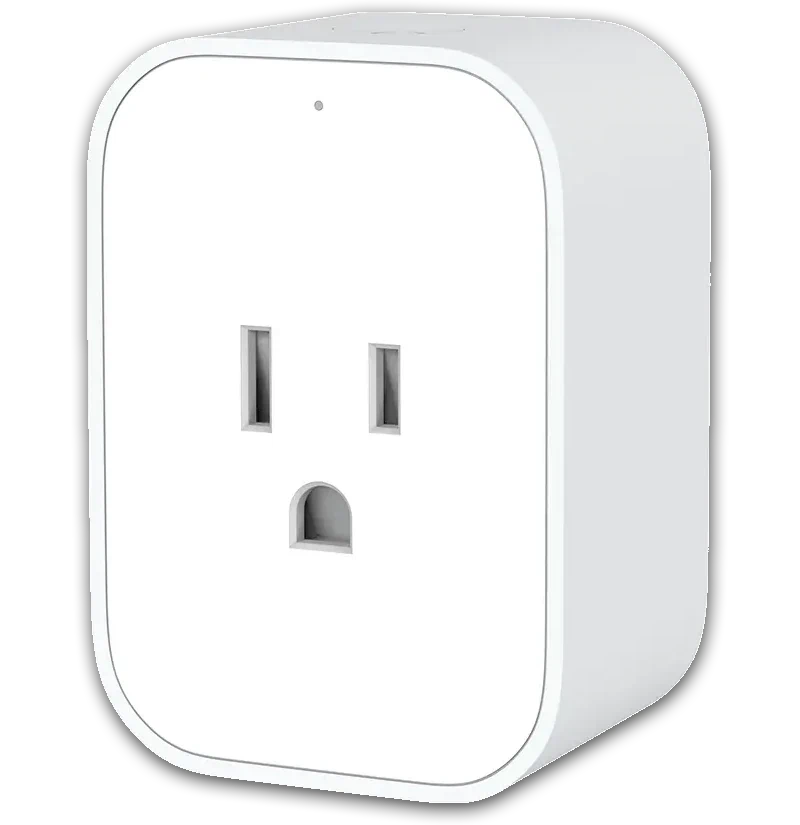

Smart Plug
Aqara Smart Plug is a Zigbee plug-in outlet with energy metering and overload protection that doubles as a mains-powered Zigbee router, extending the mesh for nearby battery sensors.
Entities in Home Assistant
8 entities via zigbee2mqtt
Primary entities 4 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Energy | sensor | energy | kWh |
| Power | sensor | power | W |
| Voltage | sensor | voltage | V |
| Switch (main) | switch | — | — |
Configuration 3 Settings exposed as entities, tunable from Home Assistant.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Auto OFF | switch | — | — |
| LED disabled night | switch | — | — |
| Power outage memory | switch | — | — |
Diagnostics 1 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Device temperature | sensor | — | °C |
From the zigbee2mqtt device database (zigbee-herdsman-converters
26.124.0):
the entities zigbee2mqtt creates for
ZNCZ11LM.
Paired through ZHA instead, the same hardware produces a different set.
Recipes using this device
No recipes reference this device yet.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
High Energy Usage Alert
Installs a Home Assistant automation that watches your whole-home power draw and warns you when it stays high for longer than it should, so a heater or a forgotten appliance does not run all day unnoticed. Add speakers to hear it, add a smart plug to shed the load.
Leak Auto Shutoff
Installs a Home Assistant automation that closes your water shutoff valve the instant a leak sensor goes wet, so a burst hose or a failed valve stops flooding within seconds. Add a smart plug to cut the appliance, a siren, and a speaker.
