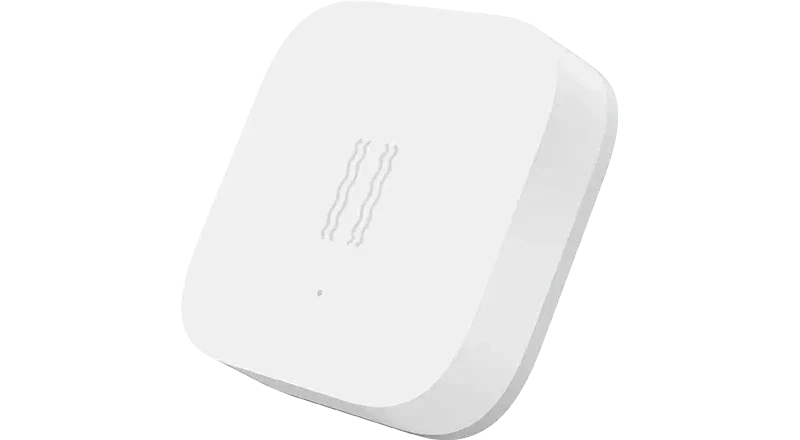

Aqara
Vibration Sensor
Aqara Vibration Sensor is a Zigbee accelerometer that detects vibration, tilt, and free fall, with adjustable sensitivity to suit doors, safes, and appliances.
Works on integrations
Protocols
Setup guides
Roles it can fill
Reports vibration, tilt angle, and drop events with adjustable sensitivity. Mount on doors, windows, safes, or appliances. Runs locally over Zigbee.
Entities in Home Assistant
14 entities via zigbee2mqtt
Primary entities 9 What automations and dashboards use.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Vibration | binary_sensor | vibration | — |
| Sensitivity | number | — | — |
| Angle x | sensor | — | ° |
| Angle y | sensor | — | ° |
| Angle z | sensor | — | ° |
| Strength | sensor | — | — |
| X axis | sensor | — | — |
| Y axis | sensor | — | — |
| Z axis | sensor | — | — |
Diagnostics 5 Health and troubleshooting values, hidden from dashboards by default.
| Entity | Type | Device class | Unit |
|---|---|---|---|
| Action | event | — | — |
| Battery | sensor | battery | % |
| Device temperature | sensor | — | °C |
| Power outage count | sensor | — | — |
| Voltage | sensor | voltage | mV |
From the zigbee2mqtt device database (zigbee-herdsman-converters
26.106.0):
the entities zigbee2mqtt creates for
DJT11LM.
Paired through ZHA instead, the same hardware produces a different set.
Where to buy
Recipes using this device
No recipes reference this device yet.
