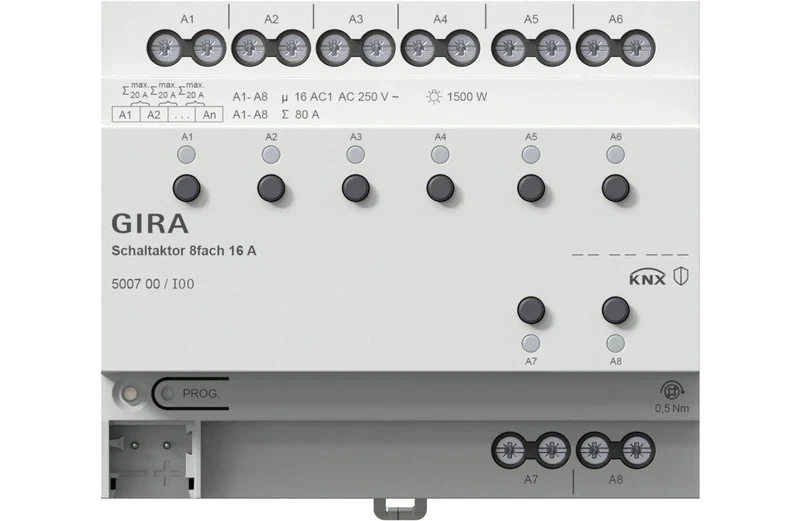

An 8-channel KNX switch actuator for the distribution board, 16 A per channel, with manual switching at the board. Home Assistant controls each channel as a switch or a light through its KNX integration.
Eight 16 A outputs on the DIN rail, each rated for 400 W of LED lighting. Two neighboring outputs share a 20 A limit, and the whole device 80 A. Each output has a manual switch with an LED, which works with or without the KNX bus.
Timers, staircase lighting and up to 64 scenes per output run in the actuator itself, along with eight logic functions. This model is new from November 2026 and replaces the 1006 00.
It is programmed in ETS first. In Home Assistant, each output is then added as a switch or a light in the KNX panel, using the group addresses from the ETS project.
