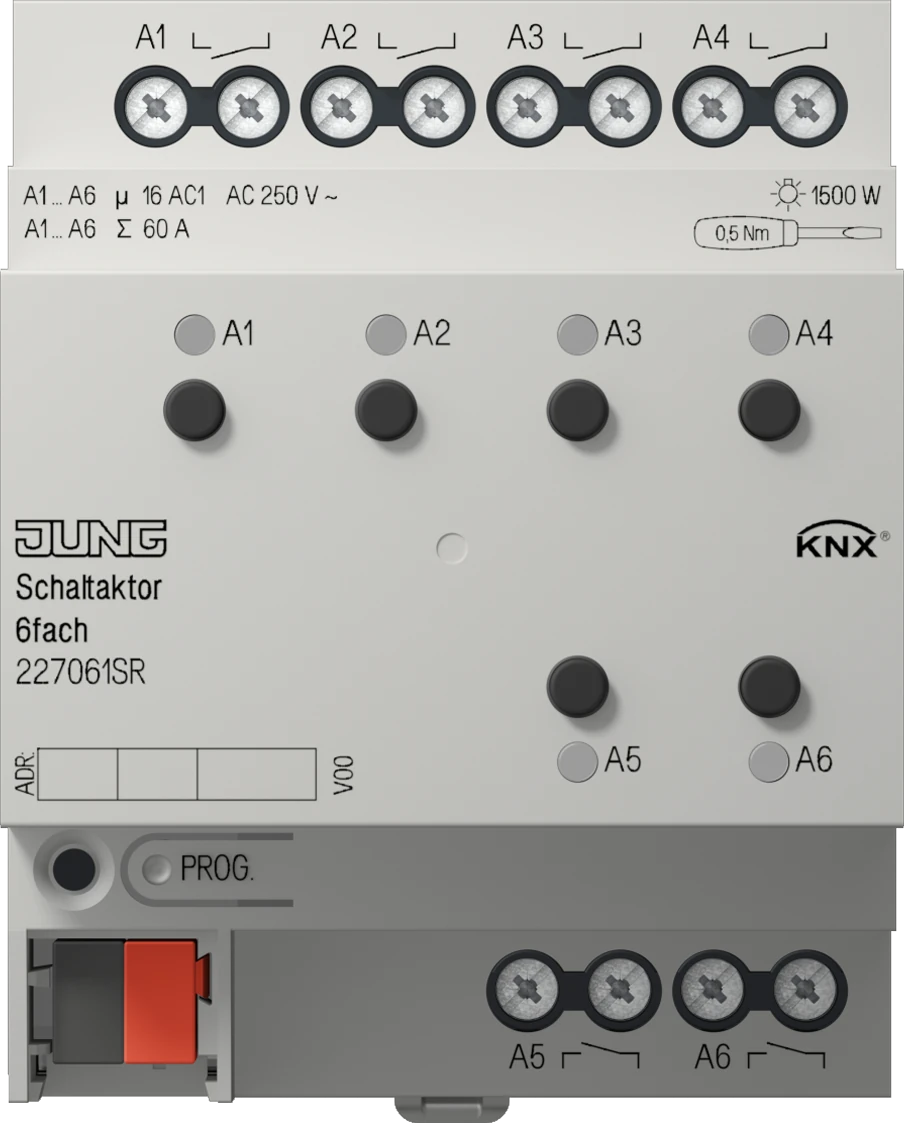

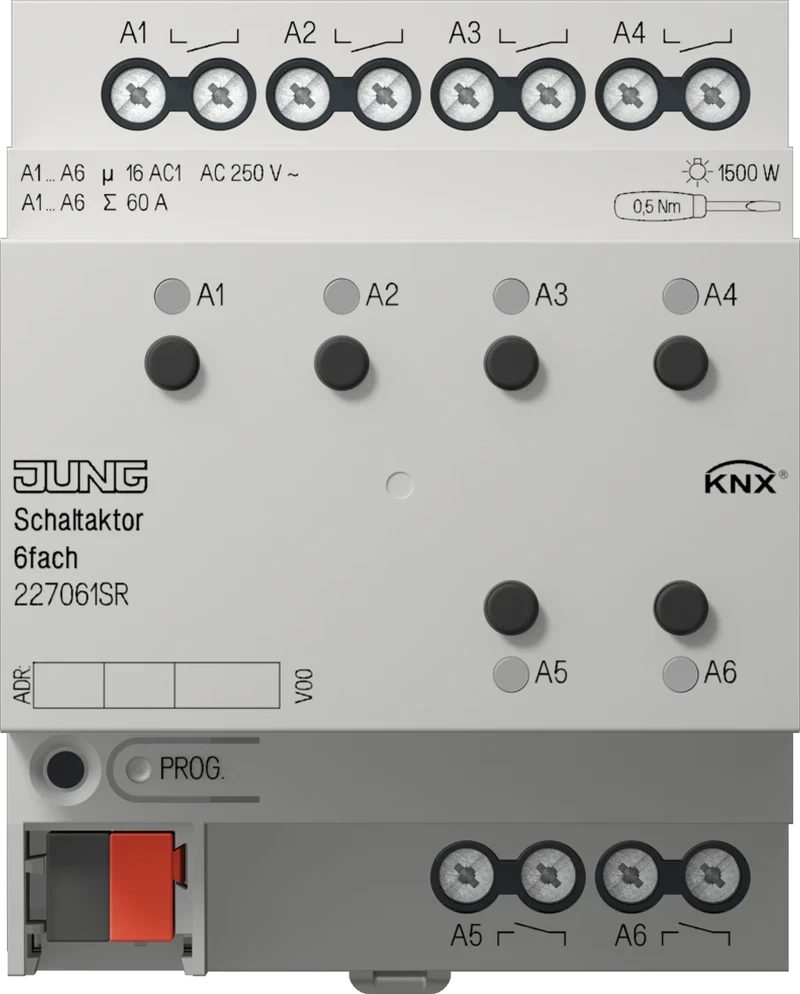

A 6-channel KNX switch actuator for the distribution board, 16 A per channel, with manual switching at the board. Home Assistant controls each channel as a switch or a light through its KNX integration.
Six 16 A outputs in a DIN rail module four units wide, each rated for 400 W of LED lighting. Two neighboring outputs share a 20 A limit, and the whole device 60 A.
Each output can be switched by hand at the board, which helps while the building is still being wired, and an LED on the front shows its state. Timers, staircase lighting and scenes run in the actuator itself.
It is programmed in ETS first. In Home Assistant, each output is then added as a switch or a light in the KNX panel, using the group addresses from the ETS project.
