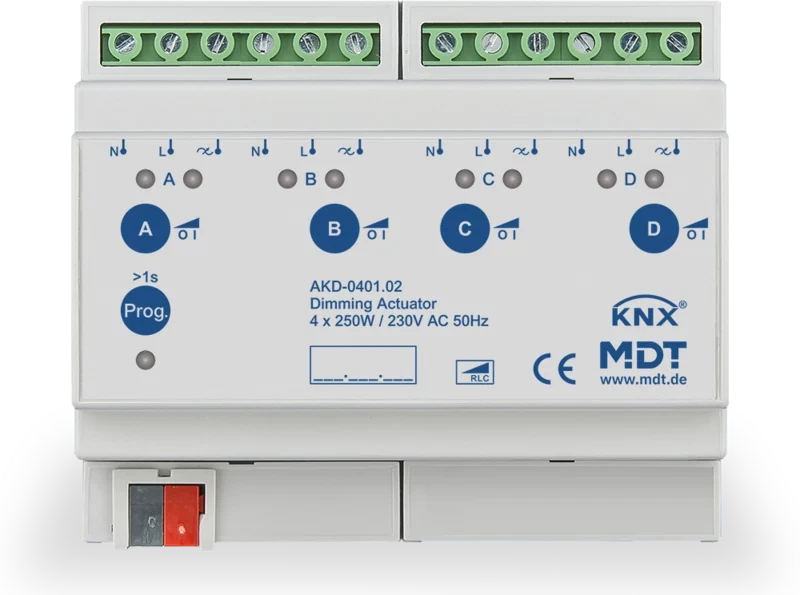

A 4-channel KNX dimmer for the distribution board, made for dimmable 230 V LED lamps, with power measurement. Home Assistant controls each channel as a dimmable light through its KNX integration.
Four dimmer channels of up to 250 W each, in a DIN rail module six units wide. It is tuned for dimmable LED lamps over 2 W and also drives halogen lamps, with leading or trailing edge dimming to match the load. Two channels can be joined for one 500 W load.
It measures the power it delivers, and flags overload, short circuits and overheating with a plain text message.
It is programmed in ETS first. In Home Assistant, each channel is then added as a light in the KNX panel, using the group addresses from the ETS project.
