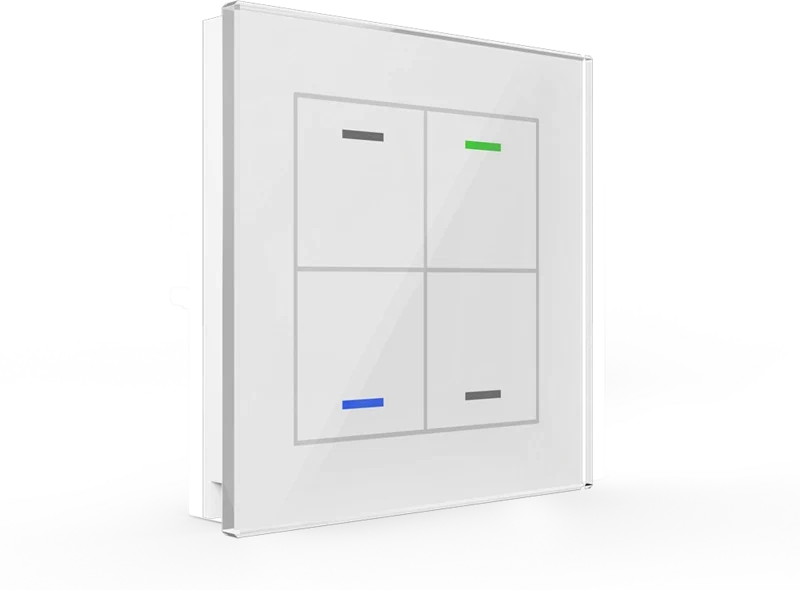

A white glass KNX wall switch with four touch buttons and colored status LEDs, for lights, shutters and scenes. Home Assistant can react to its presses through the KNX integration.
A 92 mm square glass panel with four touch buttons, each able to switch, dim, move shutters, recall scenes or send values, with short and long presses doing different things. Colored LEDs show each button’s status, and their brightness follows day and night. It is also made in black, in 1 and 2 button versions, and with a temperature sensor.
It mounts in a standard wall box and connects straight to the KNX bus, with no separate interface.
It is programmed in ETS first. In Home Assistant, its group addresses can be added in the KNX panel, so a press can trigger an automation as well as the lights it is wired to.
Recipes using this device
No recipes reference this device yet.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
