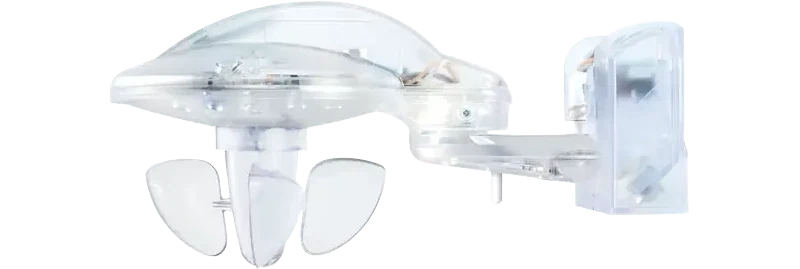

An outdoor KNX weather station measuring wind, rain, brightness and temperature, made to drive blinds and sun protection automatically. Home Assistant reads its measurements through the KNX integration.
One wall-mounted unit measures wind speed, rain, brightness and outdoor temperature. Three brightness sensors let it shade up to eight facades by the sun’s position, and it does the measuring and evaluation itself, for fully automatic blind and sun protection control.
It runs on 110 to 230 V, which also heats the rain sensor. It keeps measuring without that supply, but the rain sensor heating then stops. Versions with GPS and for 24 V are also available.
It is programmed in ETS first. In Home Assistant, its readings are added as sensors in the KNX panel, using the group addresses from the ETS project, so wind, rain and light can drive automations.
