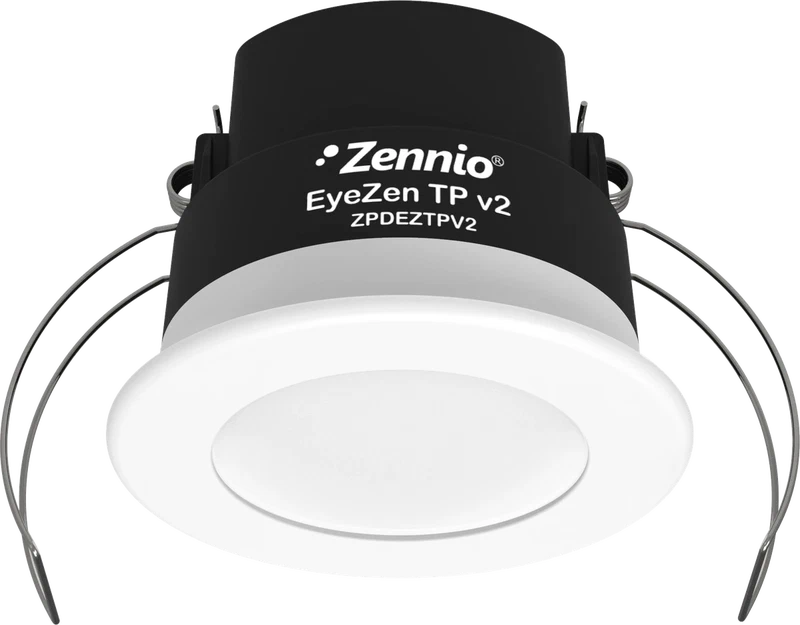

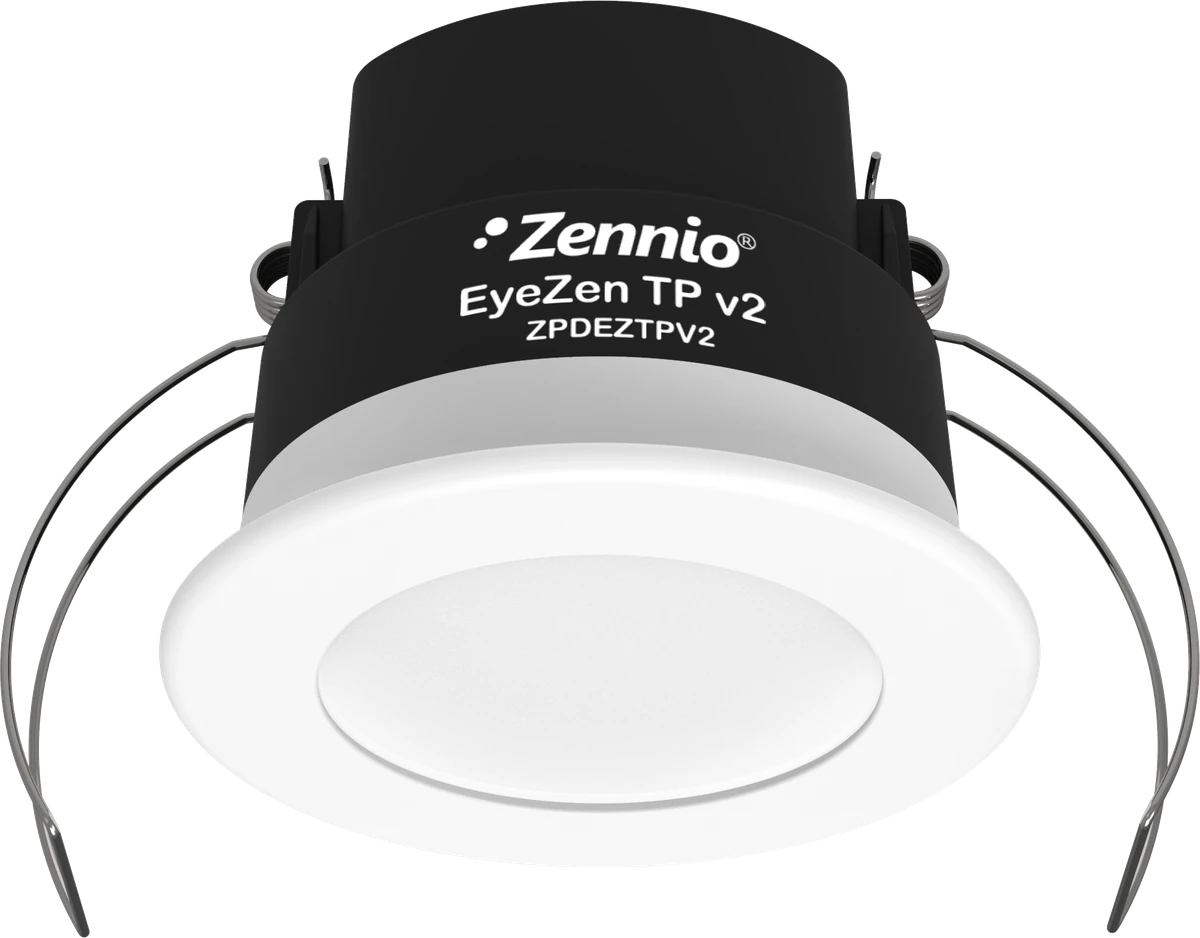

A compact KNX ceiling motion detector with a light sensor, covering a 6 m circle, with occupancy detection and constant light control. Home Assistant reads its motion and occupancy through the KNX integration.
A 58 mm detector that flush-mounts in a false ceiling, or on the surface with an accessory. It sees motion across a 6 m circle, measures light the way the eye sees it, and has six motion channels and two constant light channels. Several detectors can be linked to cover a larger area.
It comes in gloss white and anthracite, and Zennio also makes it for the US and Canadian market.
It is programmed in ETS first. In Home Assistant, its motion and occupancy outputs are added as binary sensors in the KNX panel, using the group addresses from the ETS project.
Recipes using this device
Away Motion Camera Alert
Installs Home Assistant automations that watch for motion while the house is armed and send you a notification with the camera view attached. Add presence sensors to arm and disarm on their own, a siren to sound off, and lights to flash.
Motion Hallway Light
Installs a Home Assistant automation that turns a hallway or landing light on when motion is seen and off again once the space has been still for a grace period you set. Add a light sensor and it only runs after dark, add a presence sensor and it holds the light while someone lingers.
Recipes that can use it
These recipes are built around other hardware, and pick this device up as an optional extra.
Circadian Adaptive Lighting
Installs a Home Assistant automation that walks the colour and brightness of your dimmable lights through the day, cool and bright around midday and warm and low in the evening. It only ever changes lights that are already on, so it never switches a light on by itself.
Presence Room Lighting
Installs a Home Assistant automation that keeps a room's lights on for as long as an mmWave presence sensor sees someone in it, and switches them off shortly after the room empties. Add a light sensor to run only after dark, and dimmable lights that come up softly.
Presence Thermostat Setback
Installs a Home Assistant automation that eases your thermostat into an energy-saving preset once everyone has left, and brings it back to a comfort preset the moment someone returns. Add extra occupancy sensors and any one of them counts as home.
Shades by Sun and Heat
Installs a Home Assistant automation that closes your shades when the sun climbs high and the day is hot, and opens them again as the sun drops, using Home Assistant's own sun position. Add a light and temperature sensor to hold it to genuinely bright, hot afternoons.
